Customer Journey Mapping Framework

1. What Is Customer Journey Mapping Framework?

The Customer Journey Mapping Framework is a structured method for visualizing and improving the end-to-end experience a customer has with your organization—from first awareness through purchase, use, service, renewal, and advocacy. It documents the sequence of “moments” customers go through, the touchpoints they encounter, their goals and emotions, and the operational factors that enable (or impede) success. The output is a shared map that highlights where the experience delights, where it breaks, and what to fix or reinvent.

Within the customer, service, CRM, and CX domain, journey mapping serves as the connective tissue between strategy and operations. It aligns marketing, sales, product, operations, and support around the same outside-in view, so changes to processes, technology, content, and policies can be prioritized against what matters most to customers and the business.

Consultants and in-house leaders use journey mapping to diagnose pain points, redesign core journeys (e.g., onboarding, claims, account opening), orchestrate omnichannel experiences, and connect CX improvements to measurable outcomes like conversion, cost-to-serve, churn, and lifetime value.

2. Origin and Background

Origin: Unknown; in use since at least the 1990s.

Journey mapping evolved from service design and user experience practices. A key influence was service blueprinting (Lynn Shostack, 1984), which detailed frontstage customer interactions and backstage processes. The broader management community embraced outside-in CX thinking through widely cited work such as “Understanding Customer Experience” (Harvard Business Review, 2007) and “The Truth About Customer Experience” (Harvard Business Review, 2013). Design thinking and the growth of digital channels further popularized journey mapping in the 2000s and 2010s, with consulting firms and business schools incorporating it into transformation playbooks.

Why it was created: As channels proliferated and organizations siloed, leaders needed a clear, cross-functional lens to understand and manage end-to-end experiences—beyond isolated touchpoints or functional metrics. Journey mapping provides that holistic view and a practical way to prioritize improvements that customers notice and the P&L values.

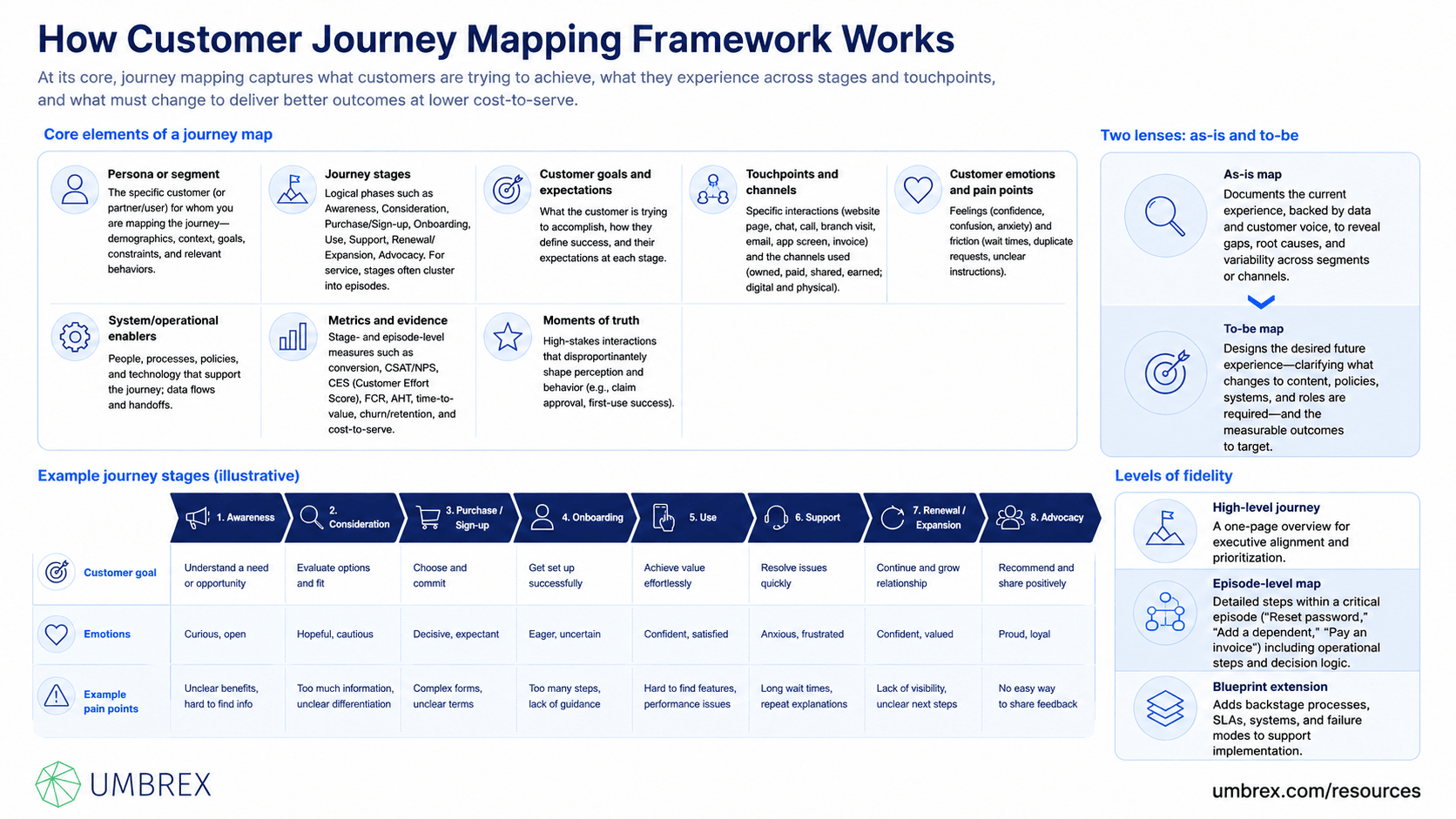

3. How Customer Journey Mapping Framework Works

At its core, journey mapping captures what customers are trying to achieve, what they experience across stages and touchpoints, and what must change to deliver better outcomes at lower cost-to-serve.

Core elements of a journey map

• Persona or segment: The specific customer (or partner/user) for whom you are mapping the journey—demographics, context, goals, constraints, and relevant behaviors.
• Journey stages: Logical phases such as Awareness, Consideration, Purchase/Sign-up, Onboarding, Use, Support, Renewal/Expansion, Advocacy. For service, stages often cluster into episodes (e.g., “File a claim,” “Move home,” “Open an account”).
• Customer goals and expectations: What the customer is trying to accomplish, how they define success, and their expectations at each stage.
• Touchpoints and channels: Specific interactions (website page, chat, call, branch visit, email, app screen, invoice) and the channels used (owned, paid, shared, earned; digital and physical).
• Customer emotions and pain points: Feelings (confidence, confusion, anxiety) and friction (wait times, duplicate requests, unclear instructions).
• System/operational enablers: People, processes, policies, and technology that support the journey; data flows and handoffs.
• Metrics and evidence: Stage- and episode-level measures such as conversion, CSAT/NPS, CES (Customer Effort Score), first contact resolution, AHT, time-to-value, churn/retention, and cost-to-serve.
• Moments of truth: High-stakes interactions that disproportionately shape perception and behavior (e.g., claim approval, first-use success).

Two lenses: as-is and to-be

• As-is map: Documents the current experience, backed by data and customer voice, to reveal gaps, root causes, and variability across segments or channels.
• To-be map: Designs the desired future experience—clarifying what changes to content, policies, systems, and roles are required—and the measurable outcomes to target.

Levels of fidelity

• High-level journey: A one-page overview for executive alignment and prioritization.
• Episode-level map: Detailed steps within a critical episode (“Reset password,” “Add a dependent,” “Pay an invoice”) including operational steps and decision logic.
• Blueprint extension: Adds backstage processes, SLAs, systems, and failure modes to support implementation.

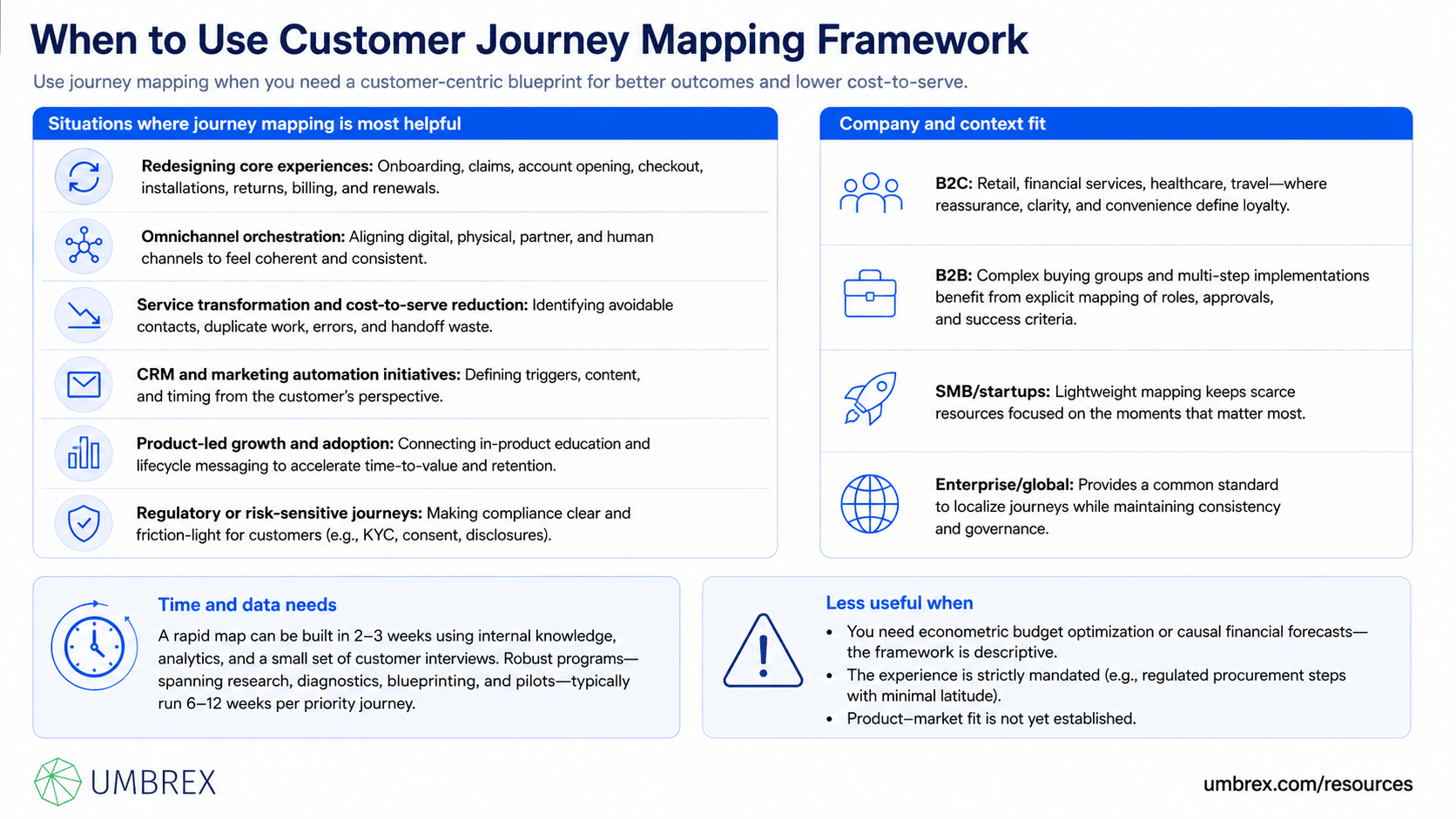

4. When to Use Customer Journey Mapping Framework

Situations where journey mapping is most helpful:

• Redesigning core experiences: Onboarding, claims, account opening, checkout, installations, returns, billing, and renewals.
• Omnichannel orchestration: Aligning digital, physical, partner, and human channels to feel coherent and consistent.
• Service transformation and cost-to-serve reduction: Identifying avoidable contacts, duplicate work, errors, and handoff waste.
• CRM and marketing automation initiatives: Defining triggers, content, and timing from the customer’s perspective.
• Product-led growth and adoption: Connecting in-product education and lifecycle messaging to accelerate time-to-value and retention.
• Regulatory or risk-sensitive journeys: Making compliance clear and friction-light for customers (e.g., KYC, consent, disclosures).

Company and context fit:

• B2C: Retail, financial services, healthcare, travel—where reassurance, clarity, and convenience define loyalty.
• B2B: Complex buying groups and multi-step implementations benefit from explicit mapping of roles, approvals, and success criteria.
• SMB/startups: Lightweight mapping keeps scarce resources focused on the moments that matter most.
• Enterprise/global: Provides a common standard to localize journeys while maintaining consistency and governance.

Time and data needs: A rapid map can be built in 2–3 weeks using internal knowledge, analytics, and a small set of customer interviews. Robust programs—spanning research, diagnostics, blueprinting, and pilots—typically run 6–12 weeks per priority journey.

Less useful when: You need econometric budget optimization or causal financial forecasts—the framework is descriptive. It also adds limited value if the experience is strictly mandated (e.g., regulated procurement steps with minimal latitude) or if product–market fit is not yet established.

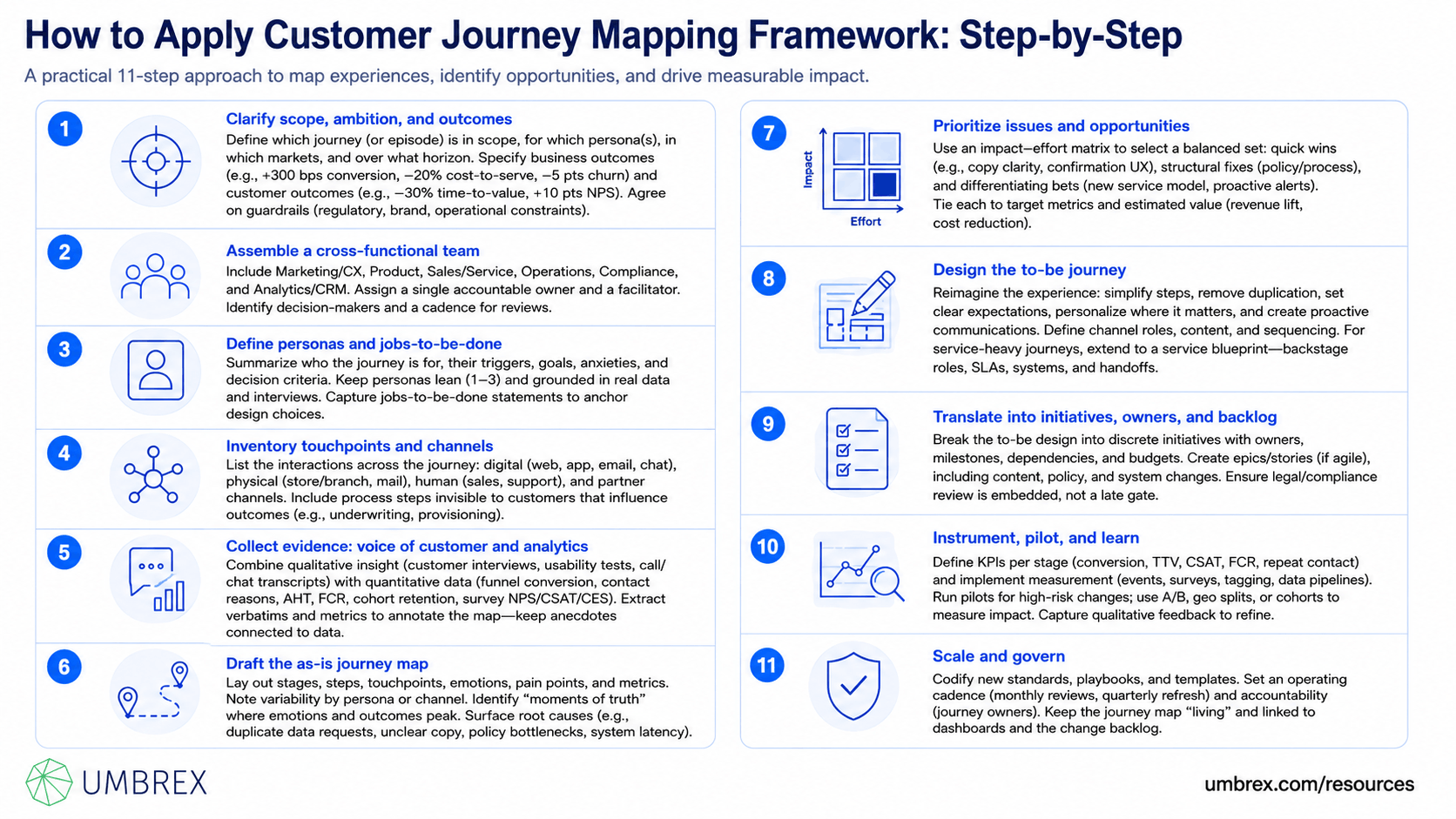

5. How to Apply Customer Journey Mapping Framework: Step-by-Step

1. Clarify scope, ambition, and outcomes

   Define which journey (or episode) is in scope, for which persona(s), in which markets, and over what horizon. Specify business outcomes (e.g., +300 bps conversion, −20% cost-to-serve, −5 pts churn) and customer outcomes (e.g., −30% time-to-value, +10 pts NPS). Agree on guardrails (regulatory, brand, operational constraints).

2. Assemble a cross-functional team

   Include Marketing/CX, Product, Sales/Service, Operations, Compliance, and Analytics/CRM. Assign a single accountable owner and a facilitator. Identify decision-makers and a cadence for reviews.

3. Define personas and jobs-to-be-done

   Summarize who the journey is for, their triggers, goals, anxieties, and decision criteria. Keep personas lean (1–3) and grounded in real data and interviews. Capture jobs-to-be-done statements to anchor design choices.

4. Inventory touchpoints and channels

   List the interactions across the journey: digital (web, app, email, chat), physical (store/branch, mail), human (sales, support), and partner channels. Include process steps invisible to customers that influence outcomes (e.g., underwriting, provisioning).

5. Collect evidence: voice of customer and analytics

   Combine qualitative insight (customer interviews, usability tests, call/chat transcripts) with quantitative data (funnel conversion, contact reasons, AHT, FCR, cohort retention, survey NPS/CSAT/CES). Extract verbatims and metrics to annotate the map—keep anecdotes connected to data.

6. Draft the as-is journey map

   Lay out stages, steps, touchpoints, emotions, pain points, and metrics. Note variability by persona or channel. Identify “moments of truth” where emotions and outcomes peak. Surface root causes (e.g., duplicate data requests, unclear copy, policy bottlenecks, system latency).

7. Prioritize issues and opportunities

   Use an impact–effort matrix to select a balanced set: quick wins (e.g., copy clarity, confirmation UX), structural fixes (policy/process), and differentiating bets (new service model, proactive alerts). Tie each to target metrics and estimated value (revenue lift, cost reduction).

8. Design the to-be journey

   Reimagine the experience: simplify steps, remove duplication, set clear expectations, personalize where it matters, and create proactive communications. Define channel roles, content, and sequencing. For service-heavy journeys, extend to a service blueprint—backstage roles, SLAs, systems, and handoffs.

9. Translate into initiatives, owners, and backlog

   Break the to-be design into discrete initiatives with owners, milestones, dependencies, and budgets. Create epics/stories (if agile), including content, policy, and system changes. Ensure legal/compliance review is embedded, not a late gate.

10. Instrument, pilot, and learn

    Define KPIs per stage (conversion, TTV, CSAT, FCR, repeat contact) and implement measurement (events, surveys, tagging, data pipelines). Run pilots for high-risk changes; use A/B, geo splits, or cohorts to measure impact. Capture qualitative feedback to refine.

11. Scale and govern

    Codify new standards, playbooks, and templates. Set an operating cadence (monthly reviews, quarterly refresh) and accountability (journey owners). Keep the journey map “living” and linked to dashboards and the change backlog.

6. Example: Customer Journey Mapping Framework in Action

Company: A regional retail bank (assets $20B) modernizing its consumer checking account opening journey.

Problem: Digital applications converted at just 24%; 35% of approved applicants did not fund accounts within 14 days; call center volumes spiked around ID verification and debit card activation. NPS for new customers lagged legacy branches by 12 points.

Application:

• Scope: From consideration (plan selection) through application, KYC verification, funding, debit card activation, and first 30 days of usage.
• Evidence: 30 customer interviews, funnel analytics, contact reason coding, and screen recordings. Key insights: jargon-heavy disclosures caused drop-off; KYC fallback (manual review) took 2–3 days; card activation instructions varied by channel; first direct deposit setup lacked guidance.
• As-is map highlights: “Moments of truth” included KYC step (anxiety), funding (trust), card activation (friction), and first paycheck (delight potential). Pain points: duplicate data entry, unclear next steps, fragmented comms.
• To-be design:
  • Single-page guided application with progressive disclosure and plain-language tooltips.
  • Expanded KYC data sources and real-time fallback to secure video verification.
  • Immediate virtual debit card issuance; activation embedded in-app with 2-tap flow.
  • “Set up your first paycheck” wizard with employer search and pre-filled instructions; proactive email/SMS reminders with clear timelines.
• Backstage changes: Policy adjustment for acceptable ID types, SLA for manual KYC (<24 hours), content governance for disclosures, and CRM triggers for milestone communications.
• Pilot and results (8 weeks): Digital conversion increased from 24% to 38%; KYC manual review rate fell from 22% to 9%; time-to-first-funding reduced from median 5 days to 2 days; first 30-day debit card activation +18 pts; new-customer NPS +10 pts; calls per new account −27%. Estimated annualized impact: +$18M NPV from higher activation and reduced service costs.

7. Strengths and Limitations

Strengths

• Outside-in clarity: Reorients teams around customer goals and emotions, not org charts and systems.
• Cross-functional alignment: Creates a common artifact that marketing, product, operations, and service can act on together.
• Actionable prioritization: Connects pain points to metrics and value, guiding a focused change portfolio.
• Scalable detail: Works from executive overviews to episode-level blueprints tied to systems and SLAs.
• Direct link to CRM and service ops: Translates into triggers, content, and workflows that reduce effort and increase satisfaction.

Limitations

• Descriptive by itself: Does not quantify causality or optimal budget allocation—needs testing and financial modeling alongside.
• Risk of subjectivity: Without robust data and diverse customer input, maps can reflect internal biases.
• Maintenance burden: Journeys evolve as products and channels change—stale maps mislead and erode trust.
• Diffusion risk: Overly complex maps can become “wall art” unless tied to owners, backlogs, and metrics.

8. Common Pitfalls (and How to Avoid Them)

• Mapping channels, not journeys

  What goes wrong: High-level lists (“web,” “email”) miss critical steps and emotions. Avoid: Map discrete steps with goals, touchpoints, and outcomes; anchor in customer jobs-to-be-done.

• Persona sprawl

  What goes wrong: Too many personas create noise and stall decisions. Avoid: Focus on the 1–3 personas that drive most value or have distinct needs; layer others later.

• Light on evidence

  What goes wrong: Anecdotes drive priorities; improvements miss impact. Avoid: Pair interviews with funnel/contact data and surveys; tag maps with metrics and verbatims.

• Skipping backstage design

  What goes wrong: Frontend changes fail due to policy/process/system friction. Avoid: Extend to a service blueprint for critical episodes—roles, SLAs, data, and handoffs.

• One-and-done mapping

  What goes wrong: Maps go stale; teams revert to silo decisions. Avoid: Make the map “living,” reviewed quarterly and linked to a funded backlog and dashboards.

• Measuring the wrong things

  What goes wrong: Optimizing vanity metrics; missing effort and outcomes. Avoid: Use stage-appropriate metrics (conversion, TTV, CSAT/NPS/CES, FCR, churn) tied to financials.

• Ignoring variability

  What goes wrong: Designs fail for edge cases (accessibility, language, device, branch vs. digital). Avoid: Include diverse users and accessibility requirements in the design.

• No single owner

  What goes wrong: Diffuse accountability, slow change. Avoid: Appoint a journey owner with authority and KPIs; clarify RACI across functions.

9. How Customer Journey Mapping Framework Relates to Other Frameworks

• Service Blueprinting: A natural complement; journey mapping shows the customer-facing path, while blueprinting adds backstage processes, systems, and SLAs to enable the experience.
• Touchpoint Mapping: Touchpoint maps list interactions and owners; journey maps provide the stage-by-stage narrative and goals that organize those touchpoints.
• Jobs To Be Done (JTBD): JTBD articulates customer goals and triggers; journey mapping operationalizes them into steps, designs, and metrics.
• Pirate Metrics/HEART: AARRR (Acquisition, Activation, Retention, Referral, Revenue) and HEART (Happiness, Engagement, Adoption, Retention, Task success) provide metric frameworks that align to journey stages.
• NPS/CSAT/CES: Outcome measures that should be embedded at key stages or episodes within the journey.
• PESO and Media Planning: For acquisition and communication-heavy stages, pair journey maps with channel frameworks to assign roles and content by moment.
• Process Improvement (Lean/Six Sigma): Use these to remove waste and variation in high-friction steps highlighted by the journey map.
• OKRs and Prioritization (RICE/ICE): Translate journey opportunities into objective/initiative backlogs; use prioritization models to sequence delivery.

Choice guidance: Use JTBD to define what customers are trying to achieve; use journey mapping to visualize the path; extend with blueprinting to design the operating model; connect to CRM automation and media frameworks for orchestration; and use OKRs and analytics to govern value delivery.

10. Key Takeaways

• Customer Journey Mapping visualizes the end-to-end experience to prioritize changes customers notice and the business values.
• Map as-is with data and voice-of-customer; design to-be with clear owners, SLAs, and metrics—then pilot, measure, and scale.
• Focus on moments of truth, time-to-value, effort reduction, and consistency across channels to drive satisfaction and P&L impact.
• Extend to service blueprinting for backstage readiness; tie maps to a funded backlog, CRM triggers, and dashboards to avoid “wall art.”
• The framework is descriptive—pair it with testing and financial models to quantify causality and ROI.

11. FAQs About Customer Journey Mapping Framework

Is journey mapping still relevant in digital-first, AI-enabled experiences?
Yes. If anything, it’s more critical. As automation and personalization scale, a clear outside-in view prevents fragmented experiences. Journey maps guide where AI/automation helps (e.g., proactive alerts) and where human support is essential.

How is journey mapping different from service blueprinting?
Journey mapping focuses on the customer’s steps, goals, emotions, and touchpoints. Service blueprinting extends the map to include backstage processes, systems, roles, and SLAs that deliver those moments. Use both for design and implementation.

How detailed should our first map be?
Start simple: one persona, one journey or episode, 6–8 stages, and the top pain points and metrics. Depth comes later through episode-level maps and blueprinting. Speed to action beats exhaustive detail.

How long does a journey mapping project take?
A rapid, decision-ready map can be built in 2–3 weeks. A robust effort with research, analytics, blueprinting, and pilots typically takes 6–12 weeks per priority journey, depending on complexity and stakeholder availability.

What metrics belong on the journey map?
Pair customer and business measures: conversion and drop-off by stage; time-to-value; CSAT/NPS/CES; first contact resolution and AHT for service steps; retention/churn and LTV for post-purchase; and cost-to-serve where relevant.

Can small organizations use journey mapping effectively?
Absolutely. A founder, product lead, and support owner can map a key journey in a workshop, validate with 5–10 customer calls, and ship improvements within a sprint. Keep it lightweight and tied to practical changes.
